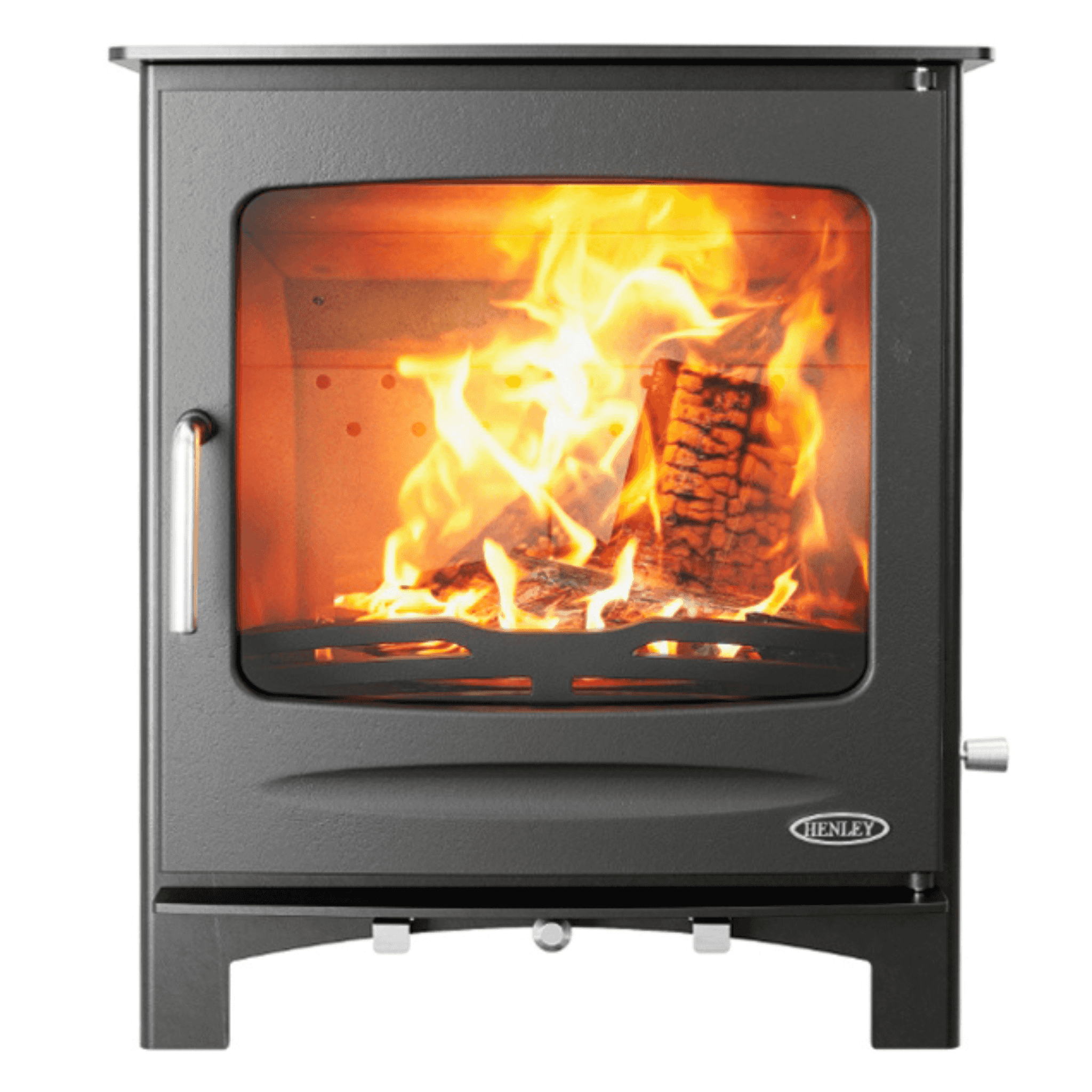

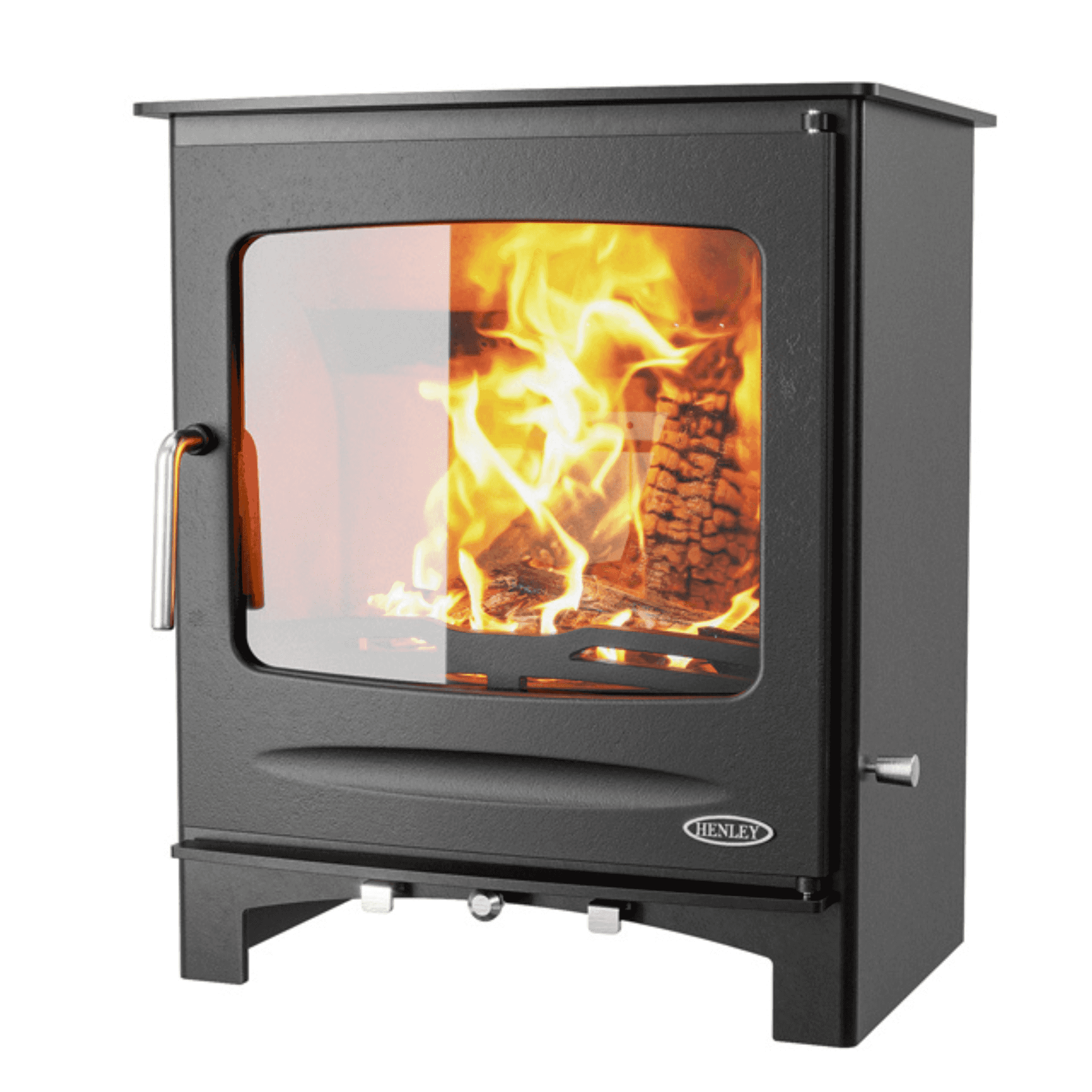

Henley Stoves Sherwood 12kW Multi Fuel Boiler Stove
Henley Sherwood 12kW Boiler Stove - Heat Your Home & Water Efficiently
The Henley Sherwood 12kW Boiler Stove is a powerful, multi-functional heating solution designed to provide both room warmth and hot water for your central heating system. Combining strong performance with efficient, clean-burning technology, it’s an excellent choice for homes looking to maximise heat output and energy efficiency.
Key Features
✔ Dual Heat Output – Delivers heat directly to your room while also powering your hot water and central heating system. Typically around 5kW to the room and 7kW to water.
✔ Multi-Fuel Flexibility – Suitable for both seasoned wood and approved smokeless fuels, giving you greater control over fuel choice.
✔ High Efficiency Performance – Achieves up to 80.2% efficiency with an A energy rating, helping reduce fuel consumption.
✔ External Air Supply – Draws combustion air from outside, ideal for airtight homes and modern heating systems.
✔ Clean-Burn Technology – Tertiary air system improves combustion by re-burning excess gases for better efficiency and lower emissions.
✔ Air-Wash System – Keeps the viewing glass cleaner for longer by reducing soot build-up.
Installation & Compatibility
Designed for flexible installation, the Sherwood Boiler Stove uses a 153mm (6”) flue and offers both top and rear outlet options to suit different setups. Professional installation by a qualified installer is required to ensure safe and optimal performance.
Performance & Specifications
-
Total Heat Output: 12kW
- Room Output: 5kW
- Water Output: 7kW
- Fuel Type: Multi-fuel (wood & approved smokeless fuels)
- Efficiency: Up to 80.2%
- Energy Rating: A
- Flue Size: 153mm (6”)
- Flue Options: Top or rear outlet
At a Glance
-
- Provides both room heating and hot water
- Multi-fuel capability for flexibility
- High efficiency with reduced fuel waste
- External air compatible for modern homes
- Clean-burning performance with low maintenance
- Flexible installation options
Henley Sherwood 12 Boiler Specifications
| Specification | Value |
|---|---|
| Total heat output | 12kW (5kW to room / 7kW to water) |
| Efficiency | Up to 80.2% (drops to 77.4% under full load) |
| Energy rating | A |
| Fuel type | Multi‑fuel (wood + approved smokeless) |
| Flue diameter | 153mm (6″) |
| Flue outlet positions | Top & rear |
| External air supply | Yes (external air facility) |

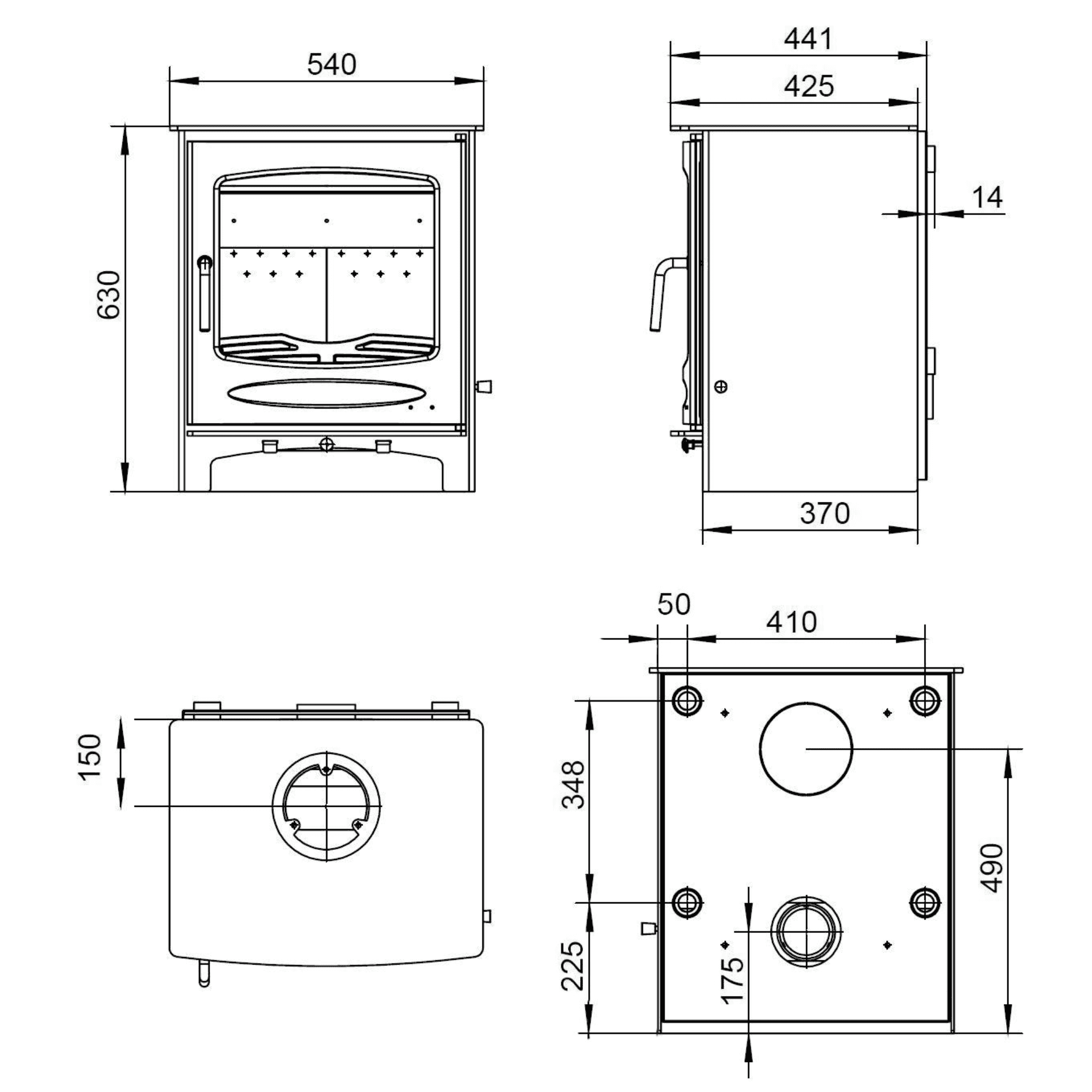

| Dimensions (W × H × D) | 540mm × 630mm × 441mm |
| Weight | 131kg |
| Warranty | 3 years (typical for boiler stoves) |
Downloadable's:
Henley Stoves Sherwood 12kW Boiler Stove Manual
Henley Stoves Sherwood 12kW Boiler Stove Energy Rating
